| Brand Name : | FAG |
| Model Number : | B7022-E-T-P4S-UM |
| Certification : | ORIGINAL |
| Price : | NEGOTIATION |
| Delivery Time : | 2 days |
| Payment Terms : | T/T |
| Supply Ability : | 1000PCS/MONTH |
B7022-E-T-P4S-UM Super precision bearings
FAG B7022-E-T-P4S-UM Super precision bearings
FAG B7022-E-T-P4S-UM bearing technical datasheet:
Type: Angular contact ball bearings for spindles, super
precision,the dimension:110x170x28mm
Bore diameter: 110 mm
Outer diameter: 170 mm
Width: 28mm
Weight: 2 KGS/PC
Basic load rating: 110 Kn
Preload force: 2072N
B: Standard steel balls
70: Medium series
E: Contact angle 25•
T: Cage Laminated fabric, guidance on outer ring
P4S: FAG standard better than P4 to DIN 620
U: Individual bearings, suitable for any arrangement
M: Moderate Preload
Package:standard carton or standard wooden case
Shipping term:TNT,FEDEX,DHL Express or your required

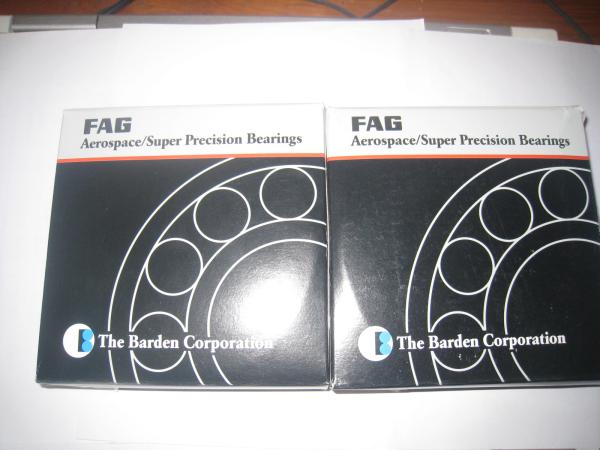

The spindle bearingB7022-E-T-P4S-UMpictures as following:
FAG bearings： | d | D | B |
mm | mm | mm | |
B7000-E-T-P4S | 10 | 26 | 8 |
B7001-E-T-P4S | 12 | 28 | 8 |
B7002-E-T-P4S | 15 | 32 | 9 |
B7003-E-T-P4S | 17 | 35 | 10 |
B7004-E-T-P4S | 20 | 42 | 12 |
B7005-E-T-P4S | 25 | 47 | 12 |
B7006-E-T-P4S | 30 | 55 | 13 |
B7007-E-T-P4S | 35 | 62 | 14 |
B7008-E-T-P4S | 40 | 68 | 15 |
B7009-E-T-P4S | 45 | 75 | 16 |
B7010-E-T-P4S | 50 | 80 | 16 |
B7011-E-T-P4S | 55 | 90 | 18 |
B7012-E-T-P4S | 60 | 95 | 18 |
B7013-E-T-P4S | 65 | 100 | 18 |
B7014-E-T-P4S | 70 | 110 | 20 |
B7015-E-T-P4S | 75 | 115 | 20 |
B7016-E-T-P4S | 80 | 125 | 22 |
B7017-E-T-P4S | 85 | 130 | 22 |
B7018-E-T-P4S | 90 | 140 | 24 |
B7019-E-T-P4S | 95 | 145 | 24 |
B7020-E-T-P4S | 100 | 150 | 24 |
B7021-E-T-P4S | 105 | 160 | 26 |
B7022-E-T-P4S | 110 | 170 | 28 |
B7024-E-T-P4S | 120 | 180 | 28 |
B7026-E-T-P4S | 130 | 200 | 33 |
B7028-E-T-P4S | 140 | 210 | 33 |
B7030-E-T-P4S | 150 | 225 | 35 |
B7032-E-T-P4S | 160 | 240 | 38 |
B7034-E-T-P4S | 170 | 260 | 42 |
B7036-E-T-P4S | 180 | 280 | 46 |
B7038-E-T-P4S | 190 | 290 | 46 |
B7040-E-T-P4S | 200 | 310 | 51 |
B7044-E-T-P4S | 220 | 340 | 56 |
B7048-E-T-P4S | 240 | 360 | 56 |
